Time switch machine horizontal and vertical switching strip bar screen
strip screen-14
$500
Feature: bar screen;strip screen;vertical strip machine;lcd bar machine
Size: 15.6'';19'';21.5'';27'';32'';50'';55'';65'';75''
Operation System: Android;Windows
Screen: Non-touch screen
Installation: Vertical;Horizontal;Wall-mounted
Type: Advertising Machine;Digital Signage Display;Splicing Screen Advertising Machine
Product Details
Product Details
Intelligent operation function manual (multimedia LCD driver board)
1. Overview of core intelligent operation functions
Double core functions of strip bar screen: With time switch machine and horizontal and vertical screen switching as the core, combined with the stable performance of multimedia LCD driver board, automatic and scene-based intelligent operation can be realized to meet the needs of multi-field information display.
Strip bar screen driver board support: The mature multimedia LCD driver board scheme is adopted, which provides the hardware foundation for intelligent operation, ensures smooth functional response and stable operation, and reduces the operation error rate.
Strip bar screen time setting mode: it supports setting the on-off time through local operation of the equipment or remote network (2.4G WiFi/Ethernet), and has a built-in real-time clock power supply battery, which can still keep the time accuracy after power failure and ensure that the timing task is not interrupted.
Scenario application:
Strip bar screen elevator advertising scene: match the elevator running time (such as 7: 00 a.m. to 10: 00 p.m.) to automatically switch on and off the machine to reduce unnecessary energy consumption;
Shangchao scene: set the startup (30 minutes before opening) and shutdown (after closing) according to the business hours, without manual attendance.
Energy consumption advantages of strip bar screen: Combined with the low-power design of < ＜20W, time switch machine can further reduce the average daily power consumption and save operating costs for long-term use.
3. Switch and rotate the screen horizontally and vertically.
Strip bar screen rotation angle support: it supports 90, 180 and 270 free rotation, and the horizontal and vertical screen modes can be switched by one button. The operation modes include local buttons, remote control or supporting software settings.
Strip bar screen display adaptation logic: automatically adjust the screen scale after rotation to ensure that the video, pictures and text contents are not distorted, and adapt to different installation scenes (such as elevator vertical screen, supermarket shelf horizontal screen, wall oblique installation 270).

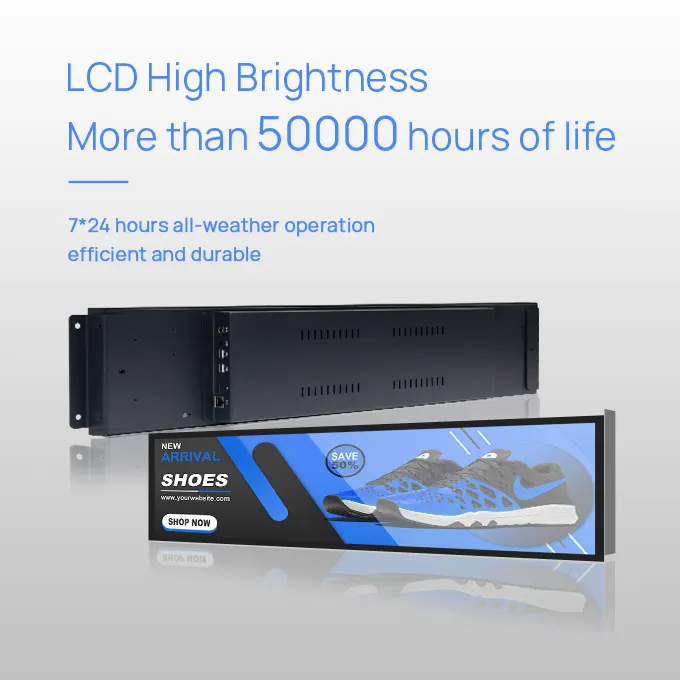

Strip bar screen hardware cooperation: the physical characteristics of LED LCD screen (3000:1 contrast and adjustable brightness) remain clear after rotation, so as to avoid the visual effect decline caused by angle change.
4. Functional coordination of multimedia LCD driver board.
Strip bar screen format compatibility: The driver board supports mainstream video formats such as MPEG, H.264, WMV and MP3 audio formats, and automatically optimizes audio and video synchronization when switching between horizontal and vertical screens to ensure smooth playback.
Operation stability of strip bar screen: the drive board scheme is mature, and it is seamlessly connected with time switch machine and rotation functions, reducing functional conflicts, such as not triggering a wrong shutdown during rotation, and ensuring the continuity of display.
Strip bar screen extension support: external devices (such as U disk update timing task and mouse rotation angle adjustment) can be connected through the driver board interface (USB OTG/HOST, HDMI OUT, etc.), which improves the operation flexibility.
5. Multi-scenario intelligent operation case
Strip bar screen catering electronic menu: every morning, noon and evening, the menu of three meals is automatically switched through the time switch machine, and the dishes are displayed vertically (rotated by 90 degrees), and the energy-saving mode is automatically entered after the peak period.
Strip bar screen government guide board: start the machine according to the working hours on weekdays, and display the work process on the horizontal screen; Automatically shut down after non-working hours, saving energy; In case of temporary activities, it can be remotely adjusted to 270 rotation to adapt to the temporary display position.
Strip bar screen shelf price tag: the horizontal screen (0) displays the price normally, and the promotion information is highlighted by switching to the vertical screen (270) through remote control, and the startup time is adjusted to cover the promotion period.
6, operation matters needing attention and maintenance
Strip bar screen rotation operation restriction: avoid frequent rotation when playing 4K ultra-high-definition video (it is recommended to stop the operation after playing) to prevent the driver board from being overloaded;
Strip bar screen timing task update: after the timing setting is updated remotely, the device needs to be restarted to take effect, so as to ensure that the new task overwrites the old setting;
Strip bar screen driver board maintenance: regularly check the driver board status through official software to avoid abnormal intelligent operation function caused by firmware aging.
