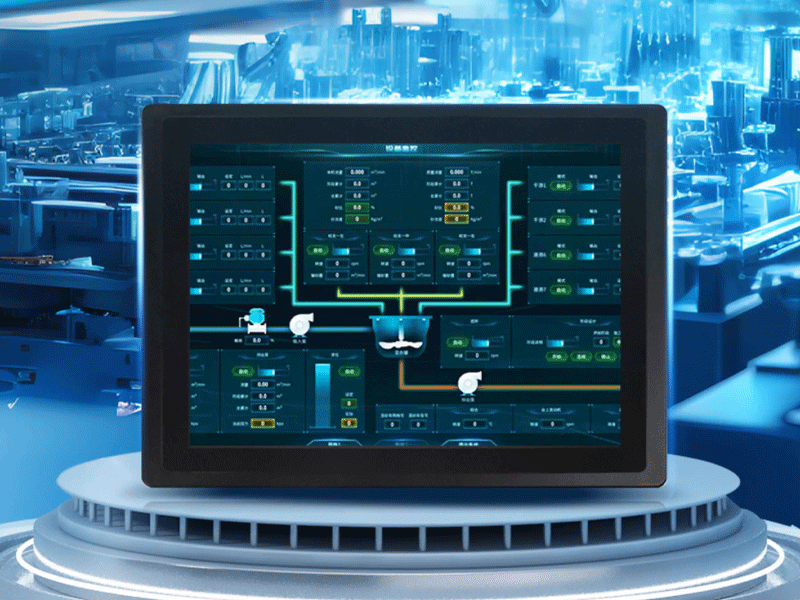

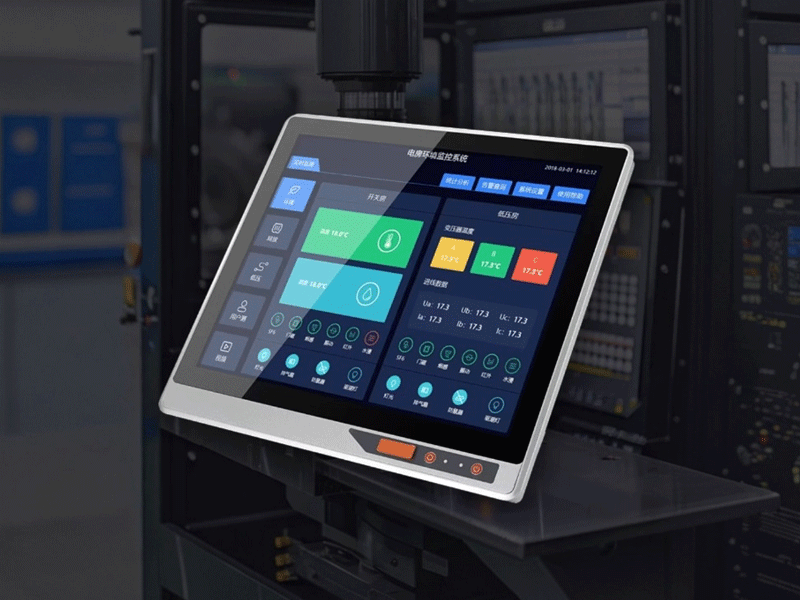

Waterproof high brightness lcd panel optical bonding module industrial vending machine touch screen monitor
industrial control screen-4
$400
Feature: philips monitor 24 inch;7 inch display;lcd1602;pink gaming monitor
Size: 10.1'';13.3'';15.6'';19'';21.5'';27'';32'';18.5'';24'';43'';20cmx20cm;25cmx25cm
Operation System: Android;Windows
Screen: Touchscreen
Installation: Vertical;Horizontal;Wall-mounted;Portable
Type: Advertising Machine;Digital Signage Display;Industrial Control Machine
Product Details
Product Details
Analysis of Power and Consumption Advantages of Industrial Touch screen Integrated Touch Screen
The fully enclosed industrial touch all-in-one machine developed by Guangzhou Ruiguan Electronic Equipment Co., Ltd. demonstrates industry-leading technological strength in power system design and power consumption optimization. As a national high-tech enterprise in the commercial display field, Ruiguan has injected 15 years of professional accumulation into the power architecture of industrial products, creating a core competitiveness of industrial control screens that are adaptable to extreme environments and energy-efficient.
In industrial automation scenarios, a stable power supply for industrial control screen is the lifeline of equipment reliability. This product of ndustrial control screen adopts a wide voltage input switching power supply solution, supporting an adaptive input range of AC 100V to 240V, and compatible with power grid standards in different regions around the world. Its built-in triple protection mechanism of overvoltage protection, undervoltage lockout, and surge suppression can effectively address common voltage fluctuations in factory environments. The specially designed DC 12V/5A output module uses military grade ceramic capacitor filtering to control the ripple factor within 3%, providing pure current for the motherboard and touch screen like a laboratory environment. This power supply design enables the equipment to maintain stable operation even in high electromagnetic interference scenarios such as CNC machine tools, and actual test data shows that its recovery time under abnormal voltage conditions is 40% faster than industry standards.
The optimization of standby power consumption for industrial control screens reflects the forward thinking of Rui Guan engineers. By restructuring the wake-up circuit of the power management chip, the standby power consumption is compressed to below 0.5W, which complies with the requirements of the EU ErP Lot6 environmental directive. Actual tests have shown that in a usage scenario where the industrial control screen is on standby for 4 hours after working 20 hours a day, the annual electricity consumption is reduced by about 87 kWh compared to similar products. Calculated based on industrial electricity prices, it can save users more than 500 yuan in electricity expenses. This low-power characteristic has special value for applications such as MES systems and security monitoring that run 24/7.
The industrial grade design of the power interface for the industrial control screen is also a prominent advantage of this product. The aviation plug connector using gold plating technology has a contact resistance of less than 10m Ω, ensuring the stability of high current transmission. The optional dual power redundancy design supports hot swappable switching, providing uninterrupted power supply for critical applications. The specially developed power timing control function can accurately manage the power on sequence of the display screen, motherboard, and peripheral modules, avoiding startup current surges. This design enables the device to achieve millisecond level precise startup even in extreme temperature ranges of -20 ℃ to 60 ℃.
In terms of balancing energy efficiency and reliability in industrial control screens, Rui Guan's solution is exemplary. The whole machine has passed a 72 hour high-temperature and high humidity aging test, and the MTBF (mean time between failures) of the power module has exceeded 100000 hours. The unique "power performance" adaptive algorithm can intelligently switch between power-saving mode (<15W), balanced mode (18-22W), and high-performance mode (25W) according to the application scenario. For example, when using medical testing equipment, if the system detects a long period of no touch operation, it will automatically lower the backlight brightness and turn off non essential peripherals. This refined management has made the equipment widely praised in the field of smart healthcare.
Ruiguan engineers also innovatively combine industrial control panel power management with IoT functionality. Through the optional RS485 interface, the real-time power consumption curve of the device can be remotely monitored, and it supports timed power on/off strategy settings. In the application of intelligent factory, this function allows managers to centrally control the power consumption period of hundreds of devices, effectively avoiding the peak power consumption. Test data shows that in actual deployment in automotive manufacturing workshops, this solution can help customers reduce overall electricity costs by 20%.
This industrial control panel power design philosophy is not only reflected in the hardware level, but also extends to the system software architecture. The deeply customized Android system has removed unnecessary backend services and kept the CPU usage rate below 3% when the system is idle. The Windows version adopts the exclusive power management driver developed by RuiGuan, which works in conjunction with Intel SpeedStep technology to achieve power performance close to the ARM platform level under x86 architecture. In edge computing applications, this optimization enables the device to maintain ultra-low power consumption below 22W when continuously analyzing data.
From the perspective ndustrial control screen of materials science, the thermal conductivity of the all aluminum body of the industrial control screen reaches 237W/(m · K), and with carefully designed internal heat dissipation channels, the working temperature of the power module can be reduced by 15 ℃. The high-temperature baking paint process not only provides IP65 protection, but its low radiation coefficient of 0.8 also significantly reduces energy loss caused by thermal radiation. The advantages of ndustrial control screen formed by the accumulation of these details make this product demonstrate irreplaceable reliability in special environments such as clean rooms in semiconductor factories.
